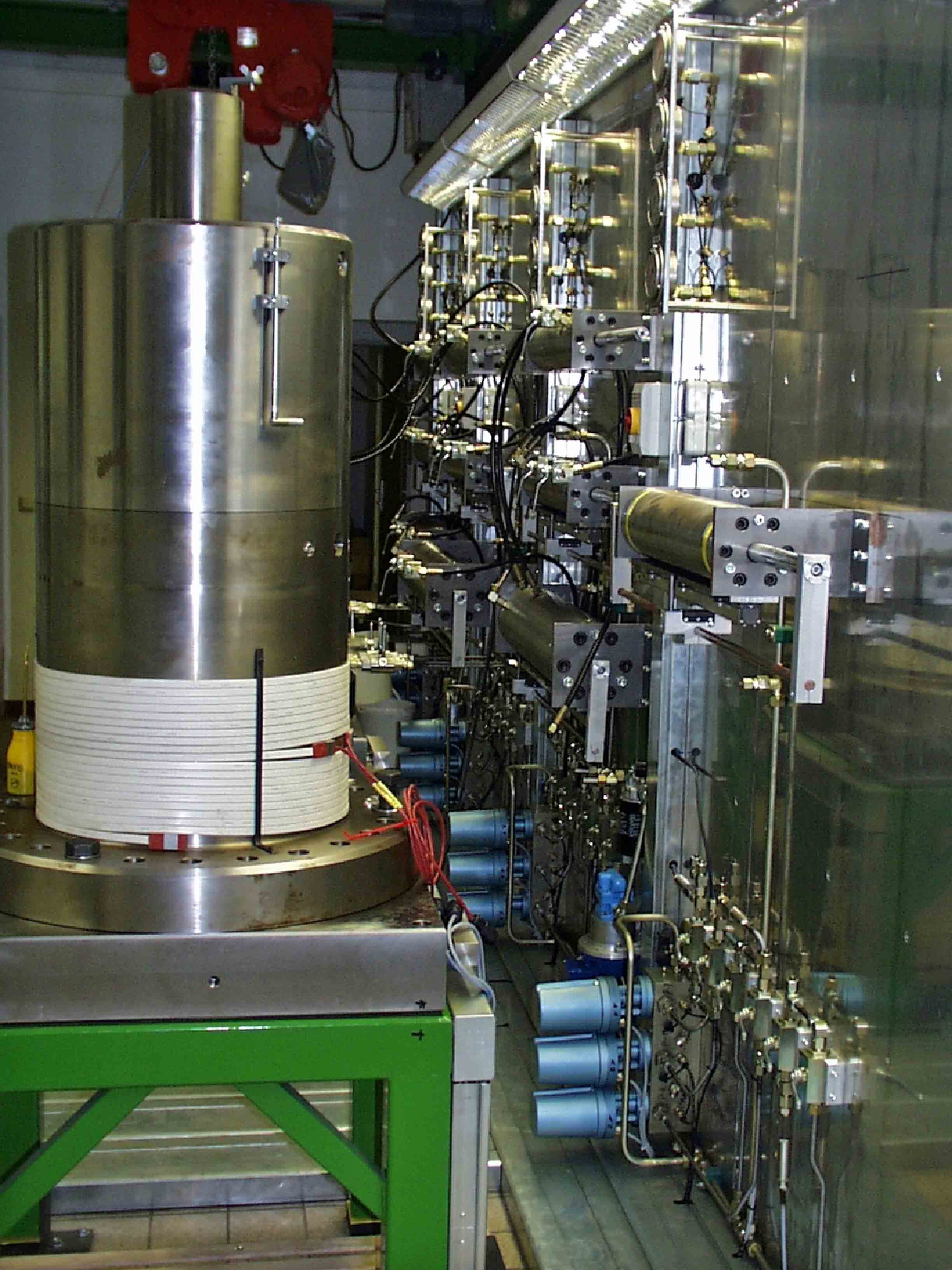

Triaxial Compression/Extension testing devices Dü8 - Dü11 - Institute of Geotechnology and Mineral Resources

Triaxialprüfanlagen Dü8 - Dü11

Technical data

kind of experiments:	TC, TE, TCc, TEc, TCH
axial force:	up to 2500 kN, hydraulic
confining pressure:	0-70 MPa, hydraulic
Internal pressure:	0-70 MPa, hydraulic
temperature:	20-70 °C, automatically controlled
examined body:	diameter 90-150 mm, length 180-300 mm
measurement recording:	computer controlled, MGC+
measurement recorder:	1 x displacement transducer W20TS/ W50TS 3 x pressure sensor P3MB, 50 MPa 1 x Pt100 1 x dilatancy measurement 1 x ultrasonic wave velocity measurement 1 x permeability measurement
